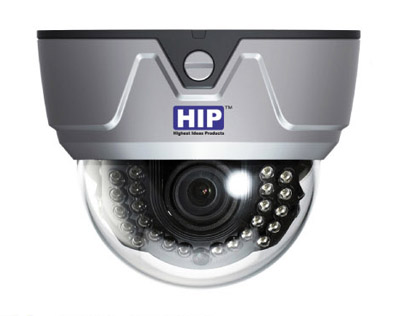

Model

CMR3360RDS-E3

Menu control

Support OSD Menu, Motion detection,Private Area,SONY Effio-E DSP

Image Sensor

1/3" EXview HAD CCD II™

H.Resolution

700TV Lines

Lens

Lens(f=2.8~12mm)

Type lens

Vari-focal Lens of korean(len 2000,000 pixel)

Effective Pixel

PAL:768(H)*494(V),NTSC:752(H)*582(V)

Min. Illumination

0.06Lux/F1.2

IR Distance

20~30 meters

Dust&Water Resistance

N

Video Output

1.0Vp-p Composite Output (75Ω / BNC)

S/N Ratio

≥52dB

LED Wave length

30x unit 850nm infrared LED

Working Humidity

≤95% RH no dew

Power Supply

DC12V(+/-10%), Max.1000mA

Power Consumption

Max.1.2W

Packing Dimension

160*160*145mm

Gross Weight

0.54kgs

Accessories

N
